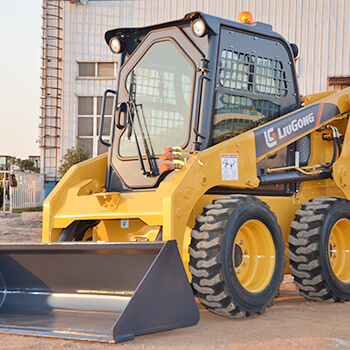

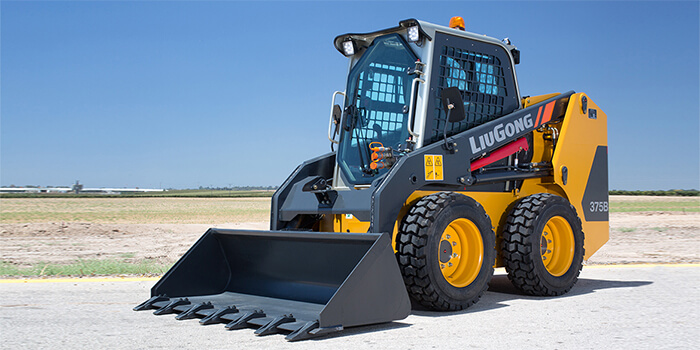

375B－375B Yanmar III

Engine Power	50.2 kW (67 hp) @ 2400 rpm	68.25 ps
Operating Weight	3100 kg	6834 lb
Rated Operation Capacity	865 kg	1907 lb
Raise	4.2 s	4.2 s
Dump	2.3 s	2.3 s
Lower (empty, float down)	2.1 s	2.1 s
Tipping Load	1730 kg	3814 lb
Bucket Breakout Force	20.4 kN	4586 lbf
Dump Clearance - Full Height	2220 mm	7’3”
Dump Reach - Full Height	540 mm	1’9”
Engine Model	4TNV98-ZCPLYSC	4TNV98-ZCPLYSC
Emission	EU Stage Ⅲ	EU Stage Ⅲ
Cooling System	13 L	3 gal
Overall Length with Standard Bucket	3432 mm	11’3”
Overall Width with Standard Bucket	1630 mm	5’4”
Overall Height to top of Cab	1940 mm	6’4”
Front Clearance Radius with bucket	1800 mm	5’11”
Bucket capacity	0.4 m³	0.52 yd3
Download Brochure

375B－375B Tier 4F / Stage V

Engine Power	49.9 kW (67 hp) @2400 rpm	49.9 kW (67 hp) @2400 rpm
Operating Weight	3100 kg	6834 lb
Rated Operation Capacity	865 kg	1907 lb
Raise	4.2 s	4.2 s
Dump	2.3 s	2.3 s
Lower (empty, float down)	2.1 s	2.1 s
Tipping Load	1730 kg	3814 lb
Bucket Breakout Force	20.4 kN	4586 lbf
Dump Clearance - Full Height	2220 mm	7’3”
Dump Reach - Full Height	540 mm	1’9”
Engine Model	Yanmar 4TNV98C-PLYS	Yanmar 4TNV98C-PLYS
Emission	EPA Tier 4F / EU Stage V	EPA Tier 4F / EU Stage V
Cooling System	13 L	3 gal
Overall Length with Standard Bucket	3432 mm	11’3”
Overall Width with Standard Bucket	1630 mm	5’4”
Overall Height to top of Cab	1940 mm	6’4”
Front Clearance Radius with bucket	1800 mm	5’11”
Bucket capacity	0.45 m³	0.59 yd³
