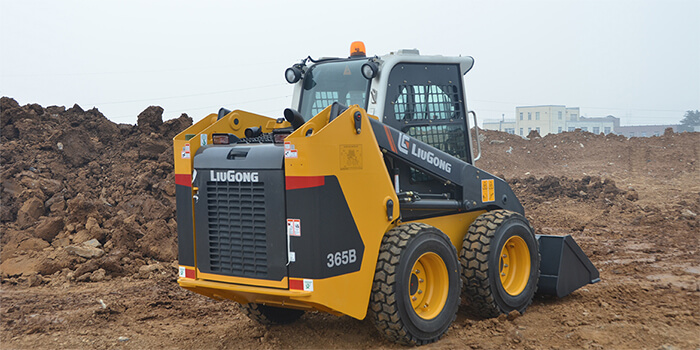

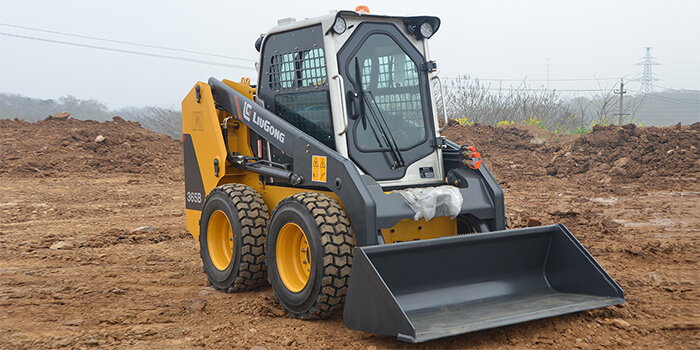

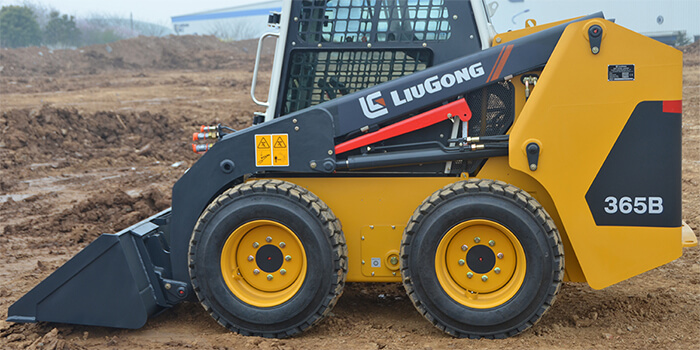

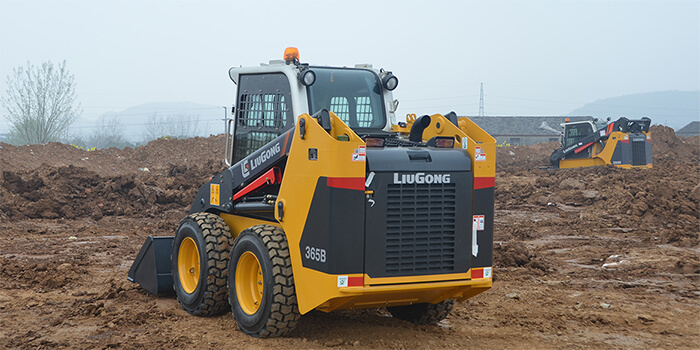

365B－365B Perkins

Engine Power	35.7 kW (48 hp) @ 2600 rpm	48.54 ps
Operating Weight	2950 kg	6504 lb
Rated Operation Capacity	795 kg	1753 lb
Raise	3.9 s	3.9 s
Dump	2.1 s	2.1 s
Lower (empty, float down)	1.9 s	1.9 s
Tipping Load	1590 kg	3505 lb
Bucket Breakout Force	20.4 kN	4586 lbf
Dump Clearance - Full Height	2220 mm	7’3”
Dump Reach - Full Height	540 mm	1’9”
Engine Model	Perkins 404D-22	Perkins 404D-22
Emission	EPA Tier 3 / EU Stage IIIA	EPA Tier 3 / EU Stage IIIA
Cooling System	13 L	3 gal
Overall Length with Standard Bucket	3432 mm	11’3”
Overall Width with Standard Bucket	1630 mm	5’4”
Overall Height to top of Cab	1940 mm	6’4”
Front Clearance Radius with bucket	1800 mm	5’11”
Bucket capacity	0.4 m³	0.5 yd³

365B－365B Xinchai

Engine Power	48 kW (64 hp) @ 2300 rpm	48 kW (64 hp) @ 2300 rpm
Operating Weight	2950 kg	6504 lb
Rated Operation Capacity	795 kg	1753 lb
Raise	3.8 s	3.8 s
Dump	2.1 s	2.1 s
Lower (empty, float down)	1.9 s	1.9 s
Tipping Load	1590 kg	3505 lb
Bucket Breakout Force	20.4 kN	4586 lbf
Dump Clearance - Full Height	2220 mm	7’3”
Dump Reach - Full Height	540 mm	1’9”
Engine Model	Xinchai 4D35G-007	Xinchai 4D35G-007
Emission	EU Stage Ⅱ	EU Stage Ⅱ
Cooling System	18 L	5 gal
Overall Length with Standard Bucket	3432 mm	11’3”
Overall Width with Standard Bucket	1630 mm	5’4”
Overall Height to top of Cab	1940 mm	6’4”
Front Clearance Radius with bucket	1800 mm	5’11”
Bucket capacity	0.4 m³	0.5 yd³
